Heavy-duty crimping machine
Kangmai’s heavy-duty crimping machine sets the standard for strength and reliability in the most demanding environments. Designed to tackle the toughest crimping tasks, this powerhouse seamlessly processes large hoses and fittings with precision and ease. Its robust construction guarantees long-term durability, while advanced hydraulic systems ensure optimal performance under continuous industrial use. Featuring adjustable settings to cater to a variety of hose sizes and specifications, it offers unparalleled flexibility. Ideal for sectors requiring uncompromising quality, such as mining and construction, Kangmai’s machine delivers consistent, secure crimps, enhancing operational efficiency and safety in heavy-duty applications.
Advantage
- Compact in size
- Easy to operate
- Composite oil cylinder
- Strong force
OPTIONAL
- Touch screen
- Voltage
- Special dies
dies
13 sets
D(mm)*L(mm)
- 15*65
- 18*65
- 20*65
- 23*65
- 26*65
- 29*65
- 37*65
- 46*78
- 51*78
- 63*78
- 71*100
- 82*100
- 91*100
KM-91M2
HOSE CRIMPING MACHINE
-Duplex conical surface, large crimping force
-More convenient for user with transitional die set.
-New material for die base, to ensure it’s long service life.
Max hydraulic hose
3″4SH
Max opening without dies
168mm
Max die opening
28mm
Motor & Voltage
4 kw/380v
Cycle time
5S/12S
Quick change tool
–
Noise level
71 dB
Oil tank volume
65 L
weight
NW 395KG
GW 470KG
Dimension
Machine 800*630*1400(mm)
Package 880*720*1590(mm)
Advantage
- Compact in size
- Easy to operate
- Composite oil cylinder
- Strong force
OPTIONAL
- Touch screen
- Voltage
- Special dies
dies
16 sets
D(mm)*L(mm)
- 15*65
- 18*65
- 20*65
- 23*65
- 26*65
- 29*65
- 37*65
- 46*78
- 51*78
- 63*78
- 71*100
- 82*100
- 91*100
- 102*100
- 114*100
- 132*100
KM-91D2
HOSE CRIMPING MACHINE
-Classical model with stable performance.
-Design with low gravity center for easy operation.
-Design of variable-speed hydraulic system for quick crimping and energy efficiency.
-Die sets to be changed in axis position, suitable for crimping large bend.
Max hydraulic hose
4″4SH
Max opening without dies
185mm
Max die opening
28mm
Motor & Voltage
5.5 kw/380v
Cycle time
2S/10S
Quick change tool
–
Noise level
71 dB
Oil tank volume
110 L
weight
NW 537KG
GW 710KG
Dimension
Machine 1050*700*1200(mm)
Package 1220*1000*1330(mm)
Advantage
- Compact in size
- Easy to operate
- Composite oil cylinder
- Strong force
OPTIONAL
- Touch screen
- Voltage
- Special dies
dies
4 sets
Customized dies as needed
KM-91F2
HOSE CRIMPING MACHINE
-Strong crimping force, easily crimp various products
-Mechanical seals with good tightness
-New material and production technology for more reliable working
-Design with low gravity center for easy operation.
Max hydraulic hose
6″4SH
Max opening without dies
270mm
Max die opening
38mm
Motor & Voltage
5.5 kw/380v
Cycle time
4S/22S
Quick change tool
–
Noise level
71 dB
Oil tank volume
150 L
weight
NW 1080KG
GW 1230KG
Dimension
Machine 1250*830*940(mm)
Package 1350*1000*1180(mm)
Advantage
- Compact in size
- Easy to operate
- Composite oil cylinder
- Strong force
OPTIONAL
- Touch screen
- Voltage
- Special dies
dies
1 sets
Customized dies as needed
KM-91K2
HOSE CRIMPING MACHINE
-Huge opening and crimping force, suitable for crimping large pipeline.
-New oil system with large oil tank, suitable for industrial production.
-With transitional die sets, suitable for crimping hose with non-standard large flanges.
-High-grade fasteners, more secure for using.
-With electronic signal, to ensure the high crimping precision.
Max hydraulic hose
14″
Max opening without dies
450mm
Max die opening
58mm
Motor & Voltage
5.5 kw/380v
Cycle time
6S/36S
Quick change tool
–
Noise level
71 dB
Oil tank volume
150 L
weight
NW 1450KG
GW 1530KG
Dimension
Machine 1420*970*1100(mm)
Package 1520*1070*1330(mm)
Advantage
- Multi-purpose
- Touch operating system
- Large opening
- Data storge
OPTIONAL
- Camera
- Voltage
- Special dies
- Back limit switch
dies
Customized dies as needed

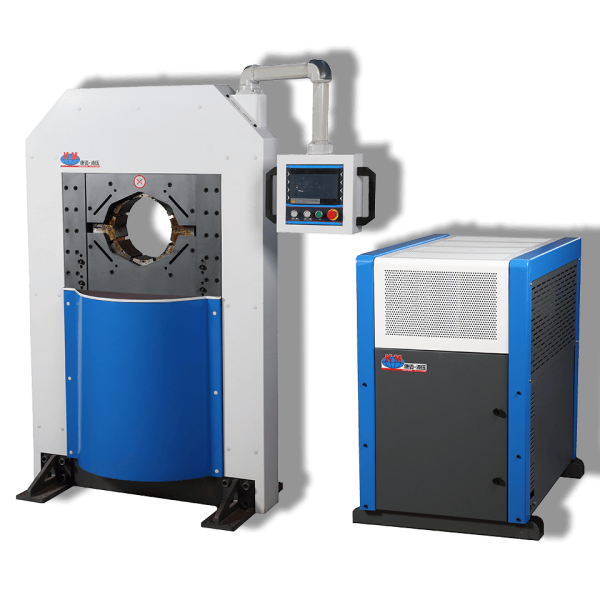

KM-81K
HOSE CRIMPING MACHINE
-Particularly narrow crimping head with large opening, suitable for large elbow.
-Color touch-screen display.
-Large opening, can hold up to 10” industrial hoses.
-Movable operation panel.
-Independent hydraulic unit.
Max hydraulic hose
10″
Max opening without dies
380mm
Max die opening
130mm
Motor & Voltage
11 kw/380v
Cycle time
6.7mm/s
Quick change tool
–
Noise level
72 dB
Oil tank volume
330 L
weight
MACHINE
NW 2850KG
GW 2920KG
HYDRAULIC UNIT
NW 550KG
GW 600KG
Dimension
MACHINE
Machine 1200*690*1900(mm)
Package 1380*1080*2050(mm)
HYDRAULIC UNIT
Unit 1200*900*1250(mm)
Package 1230*1130*1460(mm)
Advantage
- Compact in size
- Easy to operate
- Composite oil cylinder
- Strong force
OPTIONAL
- Generator drive
- Special dies
dies
1 sets
Customized dies as needed
KM-72A-140
HOSE CRIMPING MACHINE
–Split structure, easy to move
–Suitable for factory or oilfield site maintenance
-Assembly, swaging and flaring can be completed one stop.
–Dies are made of special material with vacuum heat treatment, high hardness and long life time.
Max hydraulic hose
6″
Max opening without dies
180mm
Max die opening
58mm
Motor & Voltage
5.5 kw/380v
Noise level
71 dB
IGHTW
870KG
