Portable crimping machine
These machines are small in size and lightweight, making them suitable for portable or space-constrained applications. They are often used for smaller-scale projects or fieldwork where mobility is essential.
Advantage
- Compact in size
- Easy to operate
- Composite oil cylinder
OPTIONAL
- Other oil pump
- Voltage
- Special dies
dies
7 sets
D(mm)*L(mm)
14*64
16*64
19*64
23*64
27*64
31*64
35*64

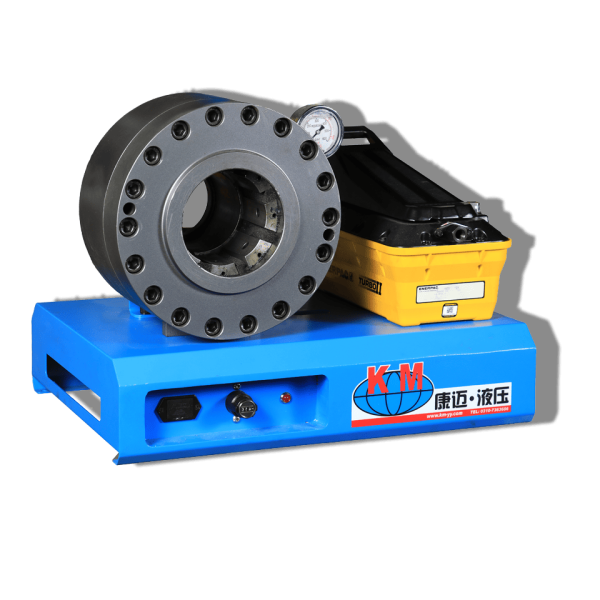

KM-92S-A
HOSE CRIMPING MACHINE
-Super light weight with stable performance.
-Use Enerpac oil pump with excellent accessories.
-The light is on when crimped to the setting value.
-The hardness of the die base and die sets is high, to ensure the long service life.
Max hydraulic hose
1 ” 2SH
Max opening without dies
53mm
Max die opening
18mm
Oil tank volume
328 ML
weight
NW 26.5KG
GW 33KG
Dimension
Machine 305*370*270(mm)
Package 460*380*440(mm)
SYSTEM PRESSURE
35 Mpa
Advantage
- Compact in size
- Easy to operate
- Composite oil cylinder
OPTIONAL
- Other oil pump
- Voltage
- Special dies
dies
7 sets
D(mm)*L(mm)
14*64
16*64
19*64
23*64
27*64
31*64
35*64
KM-92S-AF
HOSE CRIMPING MACHINE
-Super light weight with stable performance.
-Use Enerpac oil pump with excellent accessories.
-The light is on when crimped to the setting value.
-The hardness of the die base and die sets is high, to ensure the long service life.
Max hydraulic hose
1 ” 2SH
Max opening without dies
53mm
Max die opening
18mm
Oil tank volume
328 ML
weight
NW 26.5KG
GW 33KG
Dimension
Machine 305*370*270(mm)
Package 460*380*440(mm)
SYSTEM PRESSURE
35 Mpa
Advantage
- Compact in size
- Easy to operate
- Composite oil cylinder
OPTIONAL
- Other oil pump
- Voltage
- Special dies
dies
12 sets
D(mm)*L(mm)
12*45
15*45
18*45
21*56
24*56
27*56
30*56
- 33*75
- 36*75
- 39*75
- 45*75
- 48*75
KM-92S-B
HOSE CRIMPING MACHINE
-Special die base for fast crimping.
-Load-off hand-wheel make the opening of the die set fast.
-The light is on when crimping to the pre-size.
-Small volume and light weight.
Max hydraulic hose
1 1/4 “
Max opening without dies
108mm
Max die opening
28mm
Oil tank volume
1.3 L
weight
NW 71KG
GW 120KG
Dimension
Machine 550*520*395(mm)
Package 840*810*790(mm)
SYSTEM PRESSURE
30 Mpa
Advantage
- Compact in size
- Easy to operate
- Composite oil cylinder
OPTIONAL
- Voltage
- Special dies
dies
10 sets
D(mm)*L(mm)
- 15*65
- 18*65
- 20*65
- 23*65
- 26*65
- 29*65
- 37*65
- 46*78
- 51*78
- 63*78

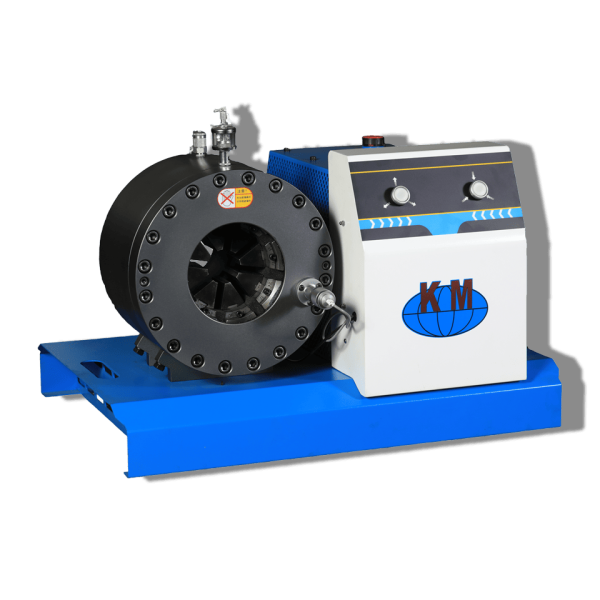

KM-91C6-DC
HOSE CRIMPING MACHINE
-Large crimping force, and good passing performance.
-Button control, which is convenient and practical.
-Perfect for outdoor service.
-Equipped with an electric limit switch indicating when the crimping diameter.
Max hydraulic hose
2″4SH
Max opening without dies
122mm
VOLTAGE
DC 12V
SYSTEM PRESSURE
30 Mpa
Max die opening
28mm
Quick change tool
–
Noise level
49 dB
Oil tank volume
4.5 L
weight
NW 132KG
GW 192KG
Dimension
Machine 550*460*470(mm)
Package 820*740*860(mm)
Advantage
- Compact in size
- Easy to operate
- Composite oil cylinder
OPTIONAL
- Voltage
- Special dies
- Generator drive
dies
10 sets
KM-91S-330
HOSE CRIMPING MACHINE
-Step die base for fast crimping
-Small volume and light weight
-High and low pressure combined power output, light weight, powerful
Max hydraulic hose
4”
Max opening without dies
180mm
VOLTAGE/MOTOR
380V/1.5KW
SYSTEM PRESSURE
30 Mpa
Max die opening
18mm
NOISE LEVEL
75dB
weight
160 KG
Dimension
840*810*790(mm)
