Production crimping machine
Kangmai’s production crimping machine is the cornerstone of efficiency in large-scale hydraulic operations. Engineered for relentless performance, this machine is built to accommodate extensive hose crimping demands with unparalleled precision. Its robust design ensures consistent, high-quality crimps, vital for industrial applications. Capable of handling a broad spectrum of hose diameters and types, it features user-friendly controls for seamless operation. The machine’s automated system maximizes throughput, reducing labor costs and enhancing production timelines. Ideal for industries requiring fast-paced production without compromise, Kangmai’s crimping machine is a testament to superior engineering, offering reliability and speed for your manufacturing needs.
Advantage
- Multi-purpose
- Touch operating system
- Large opening
- Data storge
OPTIONAL
- Camera
- Voltage
- Special dies
- Back limit switch
dies
12 sets
D(mm)*L(mm)
- 14*65
- 16*65
- 19*65
- 22*65
- 26*65
- 30*65
- 34*80
- 39*80
- 45*80
- 51*80
- 57*80
- 63*80
KM-81C
HOSE CRIMPING MACHINE
-Particularly narrow crimping head with large opening, suitable for large elbow.
-Color touch-screen display.
-Protractor for orientation fittings.
-Movable operation panel
Max hydraulic hose
2″6SH
Max opening without dies
155mm
Max die opening
60mm
Motor & Voltage
4 kw/380v
Cycle time
9.3mm/s
Quick change tool
Include
Noise level
71 dB
Oil tank volume
98 L
weight
NW 670KG
GW 750KG
Dimension
Machine 790*680*1360(mm)
Package 860*700*1450(mm)
Advantage
- Multi-purpose
- Touch operating system
- Large opening
- Data storge
OPTIONAL
- Camera
- Voltage
- Special dies
- Back limit switch
dies
12 sets
D(mm)*L(mm)
- 14*65
- 16*65
- 19*65
- 22*65
- 26*65
- 30*65
- 34*80
- 39*80
- 45*80
- 51*80
- 57*80
- 63*80
KM-81A3
HOSE CRIMPING MACHINE
-Particularly narrow crimping head with large opening, suitable for large elbow.
-Color touch-screen display.
-Protractor for orientation fittings.
-Movable operation panel
Max hydraulic hose
2″4SH
Max opening without dies
155mm
Max die opening
60mm
Motor & Voltage
3 kw/380v
Cycle time
10mm/s
Quick change tool
Include
Noise level
71 dB
Oil tank volume
98 L
weight
NW 540KG
GW 620KG
Dimension
Machine 720*810*1300(mm)
Package 890*720*1590(mm)
Advantage
- Multi-purpose
- Detachable die holder
- Large opening
OPTIONAL
- Camera
- Voltage
- Special dies
- Back limit switch
- Touch screen
dies
12 sets
D(mm)*L(mm)
- 14*65
- 16*65
- 19*65
- 22*65
- 26*65
- 30*65
- 34*80
- 39*80
- 45*80
- 51*80
- 57*80
- 63*80
KM-81A-51
HOSE CRIMPING MACHINE
-Particularly narrow crimping head with large opening, suitable for large elbow.
-Color touch-screen display.
-Protractor for orientation fittings.
-Separated die sets shelf.
Max hydraulic hose
2″4SH
Max opening without dies
155mm
Max die opening
60mm
Motor & Voltage
3 kw/380v
Cycle time
10mm/s
Quick change tool
Include
Noise level
71 dB
Oil tank volume
98 L
weight
NW 540KG
GW 620KG
Dimension
Machine 790*580*1300(mm)
Package 890*720*1590(mm)
Advantage
- Multi-purpose
- Touch operating system
- Large opening
- Data storge
OPTIONAL
- Camera
- Voltage
- Special dies
- Back limit switch
dies
12 sets
D(mm)*L(mm)
- 14*65
- 16*65
- 19*65
- 22*65
- 26*65
- 30*65
- 34*80
- 39*80
- 45*80
- 51*80
- 57*80
- 63*80
KM-81B
HOSE CRIMPING MACHINE
-Particularly narrow crimping head with large opening, suitable for large elbow.
-Color touch-screen display.
-Protractor for orientation fittings.
-Movable operation panel
Max hydraulic hose
2″4SH
Max opening without dies
155mm
Max die opening
60mm
Motor & Voltage
4 kw/380v
Cycle time
9.3mm/s
Quick change tool
Include
Noise level
71 dB
Oil tank volume
90 L
weight
NW 730KG
GW 800KG
Dimension
Machine 780*710*1400(mm)
Package 1040*940*1760(mm)
Advantage
- Multi-purpose
- Touch operating system
- Large opening
- Data storge
OPTIONAL
- Camera
- Voltage
- Special dies
- Back limit switch
dies
Customized dies as needed

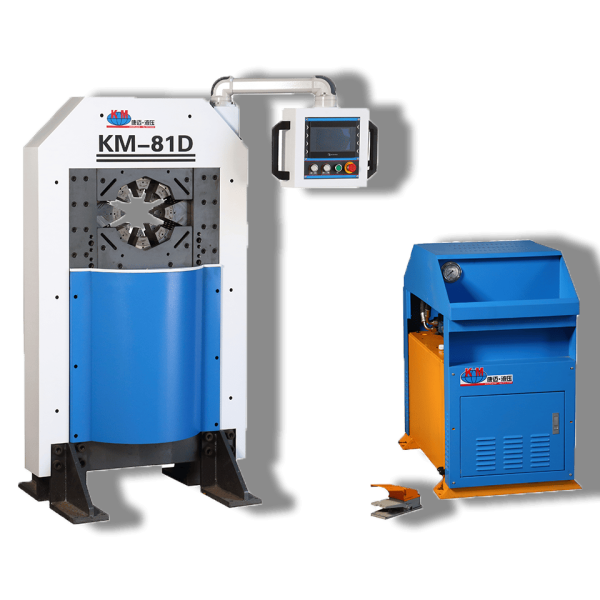

KM-81D
HOSE CRIMPING MACHINE
-Particularly narrow crimping head with large opening, suitable for large elbow.
-Color touch-screen display.
-Large opening, can hold up to 4” industrial hoses.
-Movable operation panel.
-Independent hydraulic unit.
Max hydraulic hose
4″
Max opening without dies
262mm
Max die opening
100mm
Motor & Voltage
5.5 kw/380v
Cycle time
4.7mm/s
Quick change tool
–
Noise level
72 dB
Oil tank volume
130 L
weight
MACHINE
NW 1500KG
GW 1600KG
HYDRAULIC UNIT
NW 290KG
GW 350KG
Dimension
MACHINE
Machine 910*650*1570(mm)
Package 1380*1080*2050(mm)
HYDRAULIC UNIT
Unit 935*600*935(mm)
Package 1230*1130*1460(mm)
Advantage
- Multi-purpose
- Touch operating system
- Large opening
- Data storge
OPTIONAL
- Camera
- Voltage
- Special dies
- Back limit switch
dies
Customized dies as needed
KM-81K
HOSE CRIMPING MACHINE
-Particularly narrow crimping head with large opening, suitable for large elbow.
-Color touch-screen display.
-Large opening, can hold up to 10” industrial hoses.
-Movable operation panel.
-Independent hydraulic unit.
Max hydraulic hose
10″
Max opening without dies
380mm
Max die opening
130mm
Motor & Voltage
15 kw/380v
Cycle time
6.7mm/s
Quick change tool
–
Noise level
72 dB
Oil tank volume
90 L
weight
MACHINE
NW 2850KG
GW 2920KG
HYDRAULIC UNIT
NW 550KG
GW 600KG
Dimension
MACHINE
Machine 1200*690*1900(mm)
Package 1380*1080*2050(mm)
HYDRAULIC UNIT
Unit 1200*900*1250(mm)
Package 1230*1130*1460(mm)
