Workshop crimping machine
Kangmai’s workshop crimping machine is an essential tool for hydraulic solutions, offering unparalleled versatility and performance. Engineered for durability, it supports both manual and automated operations, making it suitable for a wide range of hose sizes. Its intuitive design ensures ease of use and quick setup, ideal for high-volume production without sacrificing quality. Despite its compact size, it delivers robust performance, with adjustable crimping forces to meet diverse industry needs. Tailored for workshops where space and efficiency are key, Kangmai’s crimping machine is the choice for professionals looking for precision and reliability in their hydraulic projects.
Advantage
- Compact in size
- Easy to operate
- Composite oil cylinder
OPTIONAL
- Touch screen
- Voltage
- Special dies
dies
8 sets
D(mm)*L(mm)
- 15*65
- 18*65
- 20*65
- 23*65
- 26*65
- 29*65
- 37*65
- 46*65

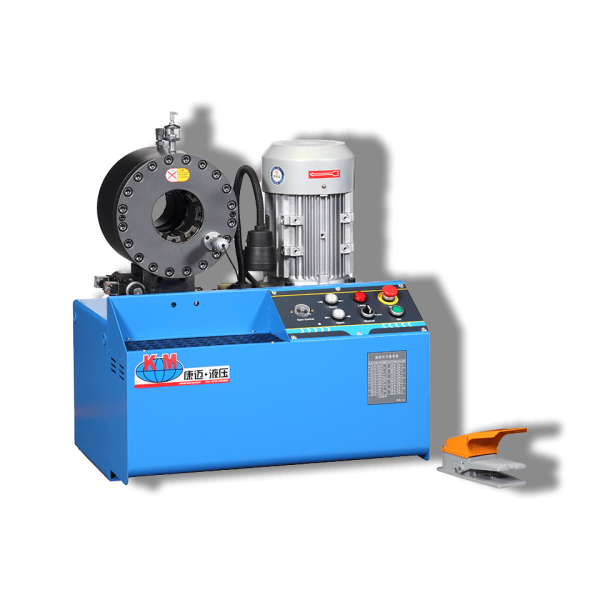

KM-91Z3 (1 1/4'')
HOSE CRIMPING MACHINE
-Small volume, light weight, easy to move.
-Quick and precise crimping.
-Added die base resin gasket to protect the machine from debris dropping.
-Electronic button control the size of open
Max hydraulic hose
1 1/4″4SH
Max opening without dies
99mm
Max die opening
21mm
Motor & Voltage
3 kw/380v
Cycle time
3S/8S
Quick change tool
–
Noise level
69 dB
Oil tank volume
45 L
weight
NW 160KG
GW 220KG
Dimension
Machine 600*460*670(mm)
Package 800*720*830(mm)
Advantage
- Multi-purpose
- Easy to operate
- Composite oil cylinder
OPTIONAL
- Touch screen
- Voltage
- Special dies
dies
12 sets
D(mm)*L(mm)
- 14*65
- 16*65
- 19*65
- 22*65
- 26*65
- 30*65
- 34*80
- 39*80
- 45*80
- 51*80
- 57*80
- 63*80

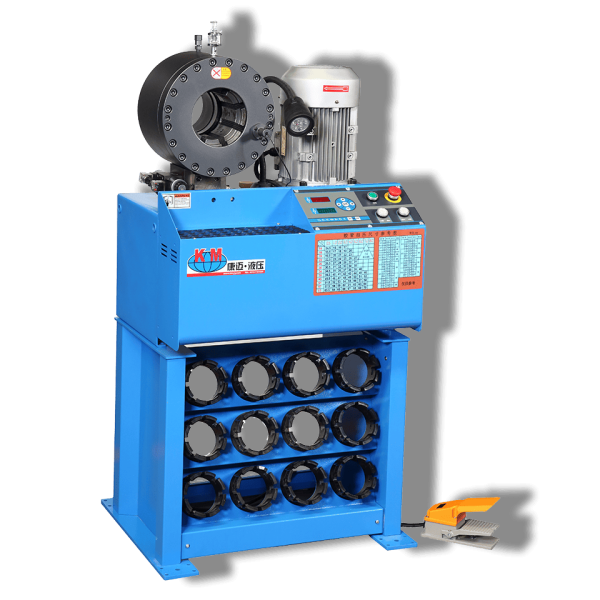

KM-91H7 (2‘’)
HOSE CRIMPING MACHINE
-Improved computer system, have more perfect function.
-Suitable for quick change tool.
-Added die base resin gasket to protect the machine from debris dropping.
-The die sets shelf can be taken apart.
Max hydraulic hose
2″6SH
Max opening without dies
122mm
Max die opening
28mm
Motor & Voltage
3 kw/380v
Cycle time
1S/6S
Quick change tool
Include
Noise level
69 dB
Oil tank volume
45 L
weight
NW 256KG
GW 330KG
Dimension
Machine 720*530*730(mm)
Package 1080*900*1080(mm)
Advantage
- Multi-purpose
- Easy to operate
- Composite oil cylinder
OPTIONAL
- Touch screen
- Voltage
- Special dies
dies
12 sets
D(mm)*L(mm)
- 14*65
- 16*65
- 19*65
- 22*65
- 26*65
- 30*65
- 34*80
- 39*80
- 45*80
- 51*80
- 57*80
- 63*80
KM-91C6 (2‘’)
HOSE CRIMPING MACHINE
-Adopt new integrated valve group,better stability.
-Button control, which is convenient and practical.
-Suitable for quick change tool.
-Added die base resin gasket to protect the machine from debris dropping.
Max hydraulic hose
2″6SH
Max opening without dies
122mm
Max die opening
28mm
Motor & Voltage
3 kw/380v
Cycle time
1S/6S
Quick change tool
Include
Noise level
69 dB
Oil tank volume
65 L
weight
NW 310KG
GW 380KG
Dimension
Machine 800*630*1376(mm)
Package 880*720*1590(mm)
Advantage
- Multi-purpose
- Easy to operate
- Convenience buttons
- Composite oil cylinder
OPTIONAL
- Touch screen
- Voltage
- Special dies
dies
12 sets
D(mm)*L(mm)
- 14*65
- 16*65
- 19*65
- 22*65
- 26*65
- 30*65
- 34*80
- 39*80
- 45*80
- 51*80
- 57*80
- 63*80

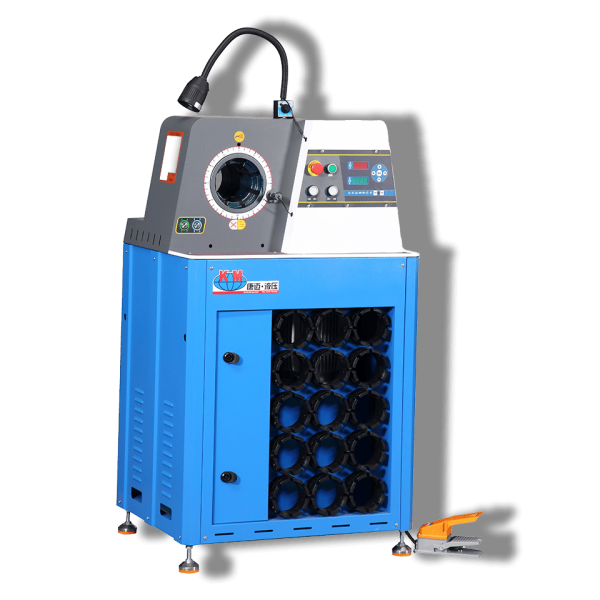

KM-91C8 (2‘’)
HOSE CRIMPING MACHINE
-Adopt new integrated valve group,better stability.
-Button control, which is convenient and practical.
-Suitable for quick change tool.
-Added die base resin gasket to protect the machine from debris dropping.
Max hydraulic hose
2″6SH
Max opening without dies
122mm
Max die opening
28mm
Motor & Voltage
3 kw/380v
Cycle time
1S/5S
Quick change tool
Include
Noise level
69 dB
Oil tank volume
65 L
weight
NW 276KG
GW 350KG
Dimension
Machine 700*600*1270(mm)
Package 880*720*1590(mm)
Advantage
- Multi-purpose
- Easy to operate
- Composite oil cylinder
- Ergonomic design
OPTIONAL
- Webcam
- Voltage
- Special dies
dies
12 sets
D(mm)*L(mm)
- 14*65
- 16*65
- 19*65
- 22*65
- 26*65
- 30*65
- 34*80
- 39*80
- 45*80
- 51*80
- 57*80
- 63*80
KM-91C9 (2 ‘’)
HOSE CRIMPING MACHINE
-Improved computer system, have more perfect function.
-Suitable for quick change tool.
-Added die base resin gasket to protect the machine from debris dropping.
-The die sets shelf can be taken apart.
Max hydraulic hose
2″6SH
Max opening without dies
122mm
Max die opening
28mm
Motor & Voltage
3 kw/380v
Cycle time
1S/6S
Quick change tool
Include
Noise level
69 dB
Oil tank volume
45 L
weight
NW 279KG
GW 350KG
Dimension
Machine 740*600*1380(mm)
Package 880*7200*1590(mm)
Advantage
- Multi-purpose
- Easy to operate
- Composite oil cylinder
OPTIONAL
- Touch screen
- Voltage
- Special dies
dies
11 sets
D(mm)*L(mm)
- 15*65
- 18*65
- 20*65
- 23*65
- 26*65
- 29*65
- 37*65
- 46*78
- 51*78
- 63*78
- 71*100
KM-91L2 (2 1/2 ‘’)
HOSE CRIMPING MACHINE
-The eight pieces of die sets are in the same level with same sizes, to ensure the crimped hose assembly elegant and sturdy.
-High grade sealing elements, to ensure the head with good tightness
-Electronic control opening, more convenient to use
-Die sets to be changed in axis position, suitable for non-standard pipeline.
Max hydraulic hose
2 1/2″4SH
Max opening without dies
134mm
Max die opening
28mm
Motor & Voltage
4 kw/380v
Cycle time
3S/8S
Quick change tool
Include
Noise level
69 dB
Oil tank volume
65 L
weight
NW 326KG
GW 400KG
Dimension
Machine 800*630*1400(mm)
Package 880*7200*1590(mm)
